AIMA E-Bike is proud to present the Big Sur, our first e-bike model. Inspired by the rugged terrain and sweeping vistas of California's Big Sur coastline, infused with a deep appreciation for the beauty of the natural world, and a commitment to cutting-edge engineering, crafted with meticulous attention to detail, AIMA E-Bike is designed in California and manufactured in the world's largest E-Mobility factory. We prioritize safety, performance, aesthetics, and integrity in every step of the manufacturing process, with a mission to deliver you the perfect companion for your next big ride.
Specifications
| MOTOR |

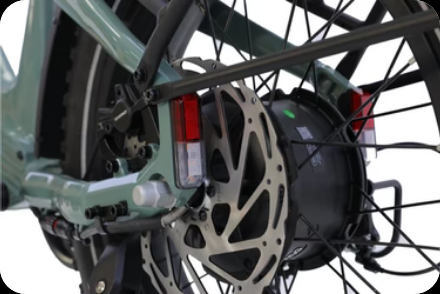

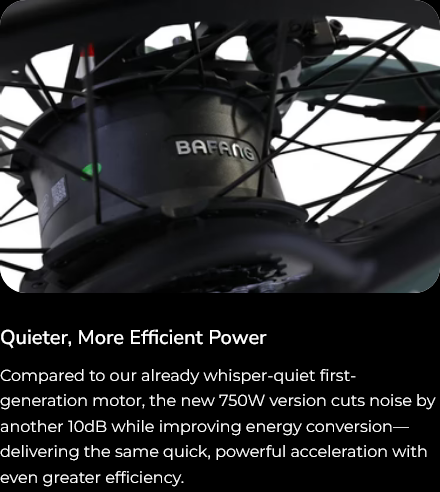

Rear Hub Motor, BAFANG, 750W
Peak Power: 1200W | Max Torque: 85Nm |
| THROTTLE |
Throttle on Demand |
| DISPLAY |

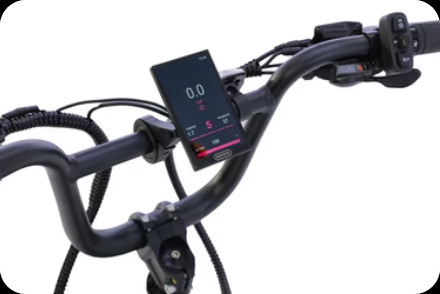

BAFANG E-system TFT Display
Smart Function: FindMy, Navigation, Calls, Notifications |
| CERTIFICATION |
UL2849 Compliant |
| SPEED |
20 MPH |
| BATTERY |

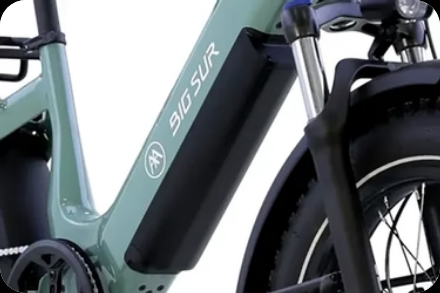

Removable Internal Lithium-Ion, 48V, 20Ah (960Wh) |
| LIGHTING |
Integrated Headlight, Tail Lights, and Turn Signals w/ Horn |
| PEDAL SENSOR |
Customizable w/ Torque & Cadence Modes |
| PEDAL ASSIST |
5 PAS Levels |
| CHARGER |
48V, 3 Amp Fast Charger, 7–8 Hours to a Full Charge |
| RANGE |
40–75 miles |
| FRAME |
6061 Single-Butted Aluminum Alloy Frame |
| WEIGHT |
77 lbs |
| PEDALS |
9/16" Alloy Platform |
| FORK |
ZOOM Suspension Fork, 80mm Travel, Adjustable Preload, Lockout |
| PAYLOAD CAPACITY |
400 lbs |
| KICKSTAND |
Aluminum Alloy Kickstand |
| CRANKSET |
160mm w/ 52T Chainring |
| SHIFTER |
Shimano 7 Speed |
| DERAILLEUR |
Shimano 7 Speed |
| CASSETTE |
7 Speed, 11–28T |
| BRAKES |
Tektro Hydraulic Disc Brakes, 203 mm Rotors |
| CHAIN |
7 Speed |
| RIMS |
Double Wall Aluminum Alloy |
| SPOKES |
Black Stainless 12G Front / 12G Rear |
| TUBES |
Butyl Rubber |
| FRONT HUB |
Aluminum Alloy Disc |
| TIRES |
20" x 4.0" |
| SADDLE |
AIMA Comfort Saddle |
| SEATPOST |
Aluminum Alloy, 30.9mm 2-Bolt Clamp, 300mm |
| STEM |
Threadless, 31.8mm, 30° Rise, 50mm Length |
| SEAT CLAMP |
34.9mm Quick Release |
| HANDLEBARS |
Aluminum Alloy Double Wall, 31.8mm, 680mm |
| HEADSET |
Sealed Bearing Headset |
| GRIPS |
Ergonomic Comfort |
