Blaupunkt Fiene
Blaupunkt Fiene
Couldn't load pickup availability
Durable, single die cast foldable magnesium frame, makes for a sleek design.
Portable, only 47lbs, easy to stow away thanks to the intelligent quick-release mechanism including foldable pedals and handlebar.
Intelligent clamping mechanism!

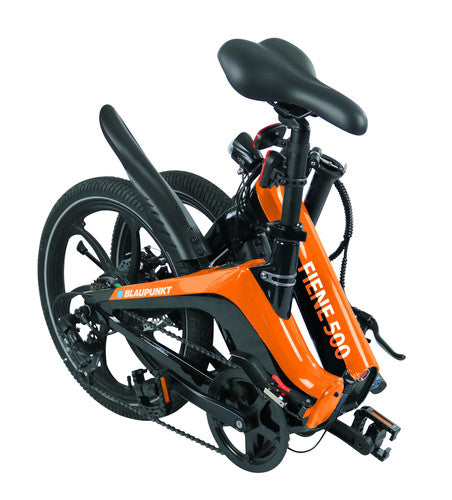

Equipped with an intelligent clamping mechanism, the Blaupunkt FIENE® can be easily folded and thus reduced in size by half. In just 4 steps, the folding e-bike becomes a handy and easy-to-stow “package”. The low weight of approx. 21 kg also makes it easy and comfortable to take with you on the bus and train.
Strong engine!
The strong 36 volt rear wheel hub motor with 50 Nm provides the perfect support, which together with the integrated and powerful lithium-ion battery forms a perfect team. The motor is durable and maintenance-free and to protect the battery, the integrated BMS (Battery Management System) always ensures an optimal energy supply.
LCD bike computer!
The 3 levels of the motor are controlled via the easy-to-read LCD computer. It also provides important information such as the current battery life, information about the route, speed and much more. The engine power can also be completely deactivated.
Folding e-Bike FIENE®
20 inch e-folding bike at the highest level.
Extremely stable magnesium frame with an unmistakably cool design. The sporty bike with a practical quick release mechanism.
approx. 21 kg weight (incl. battery)
up to 70 km* range
*The range depends on the load, driving style and area of use.
General Specifications
• Blaupunkt 20“ design bike in color racing- orange/ black
• Stable, foldable Magnesiumframe
• Easily stowable thanks to intelligent quick release mechanism incl. foldable pedals & handlebar
• Magnetlock for secure folding
• Transportation wheel
• Tektro disc-brakes
• 6 gear Shimano SIS derailleur
• Comfortable 2.125 tires
• LCD-computer with 3- step PAS up to 25 km/h
• Li-Ion battery 36 V/ 10,5 Ah with short charge time
• Battery removable/ lockable
• Range up to 70 km/ 45 miles*
• Only about 21 kg weight with battery
• Meets the requirements of german StVZO
• Designed in Germany, Made in EU
*The range with one battery charge depends on many factors, such as: Support level used, driving speed, physical fitness and personal performance of the driver, shifting behavior of the driver (if gearshift is available), road conditions, wind conditions, driver’s seating position, system weight, temperature.
Technical Specifications
Frame: Magnesium alloy
Rims: Magnesium, black powdered
Tires: 20“x 2.125
Shift lever: Shimano 6- gear SIS derailleur (44T / 14T-28T )
Brakes (front/ rear): Tektro disc brakes, mechanical, 160 mm
Headset: Semi integrated
Max. payload: 120 kg
DRIVE
Engine: Rear hub motor Xiongda XD-20GS, DC 36 V/ 250 W, 50 Nm, IP54, brushless, maintenance free
Battery: 36 V/ 10,5 Ah LG- Lithium- Ion battery w. integrated BMS
Controller: 36 V/ 15 A DC
Sensors: Cadence- & speed sensor
Driving modes: 3 level PAS/ PAS off
Bike computer: LC- Display wit 3 function keys, backlight. Functions: Speed, ODO, TRIP, TIME, PAS LEVEL, battery, lights, auto- power- off, error display
Charger: Switching power supply (AC 100 – 240 Volt), 42 V, 2 ACharging time: about 4- 6 h
Range: Up to 70 km/ 45 miles (1)
Max. speed (PAS): max. 25 km/h
LIGHTING
Lamps/ reflectors: LED- headlight with reflector, EPAC powered Rechargeable USB LED- battery rear light at saddle stem Z- reflector, Pedals w. integrated reflectors
Tires with circumferential reflector stripes
FURTHER CONFIGURATION
Mudguards: Yes, included accessories
Kickstand: Yes, left sided at rear axle’
Pedals: Foldable
Battery removable: Yes
Battery lockable: Yes
Charging if installed/ removed: Yes / Yes
Battery indicator: Yes, computer display
Additional battery: Optional
Chain protection: Yes, integrated
Luggage carrier: No
Bell: Yes, integrated on brake lever
Sprung seat post: No
Suspension fork: No
Carry bag: Optional
Handlebar bag: Optional
