ALL E-BIKES PURCHASED FROM OUR STORE ENJOY A DISCOUNTED ASSEMBLY FEE OF JUST $150.
Magician Alpha Mini - Price includes $350 mandatory Manufacturer Destination Fee
Magician Alpha Mini - Price includes $350 mandatory Manufacturer Destination Fee
Couldn't load pickup availability
Alpha Mini
Motor

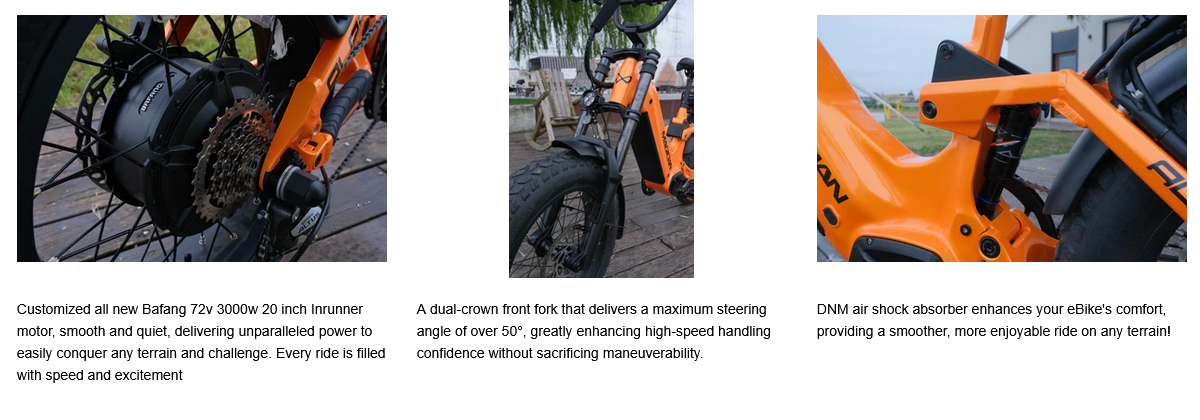

Customized all new Bafang 72v 3000w 20 inch Rear-hub motor, peak 5000w, peak torque 180 N.M
Battery sizes
Total capacity of 72v 30ah 2160wh: 72v 20ah 1440wh (Front battery) + 72v 10ah 720wh
Controller
Bafang 72v 58a 18 mosfets high performance controller

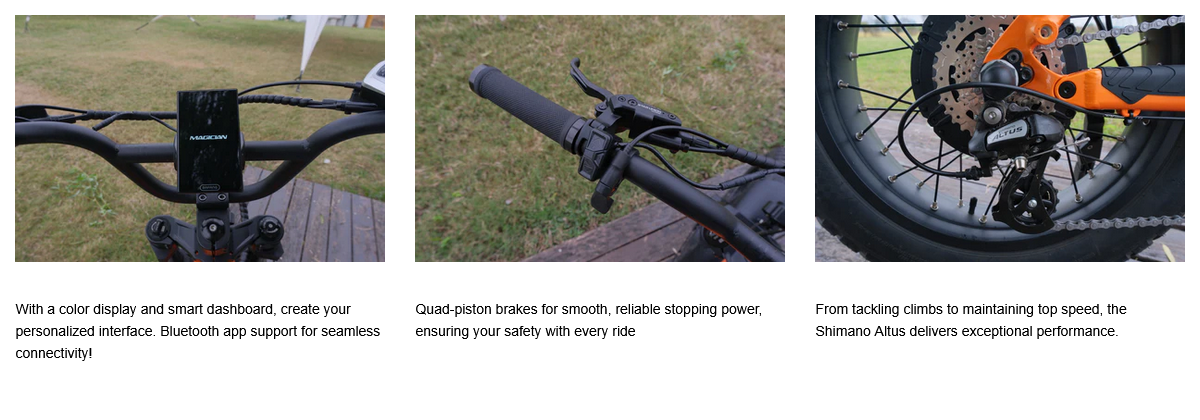

Display
Bafang DP C010 center-mounted colour LCD diaplay
Lights
12v 9w 180LUX
Bottom Bracket
Bafang Torque sensor, 120mm
Assist Type
Cadence/Torque optional
Assist Levels
0-5
Throttle
Right-hand twist throttle with on/off button
Drive
Shiter Rear
Shimano Altus 7 speed, thumb shifter
Cassette
11-34T Shimano cassette
Chain
KMC Z8.3 EPT 118 links
Crank set
Double chain ring 58T/152mm arms
Top Speed
Max 50mph
Suspension
Fork
Exsho Dual crown suspension hydraulic fork, 100mm travel, 38mm reinforced inner tube, thru axle, lockout and preload
Rear suspension
DNM 38RC air coil shock, 190*51mm
Weight & Payload
Weight
Total weight of bike with both batteries = 132LBS / Total weight of bike without batteries = 98LBS
Payload
Bike Maximum payload=450lbs
