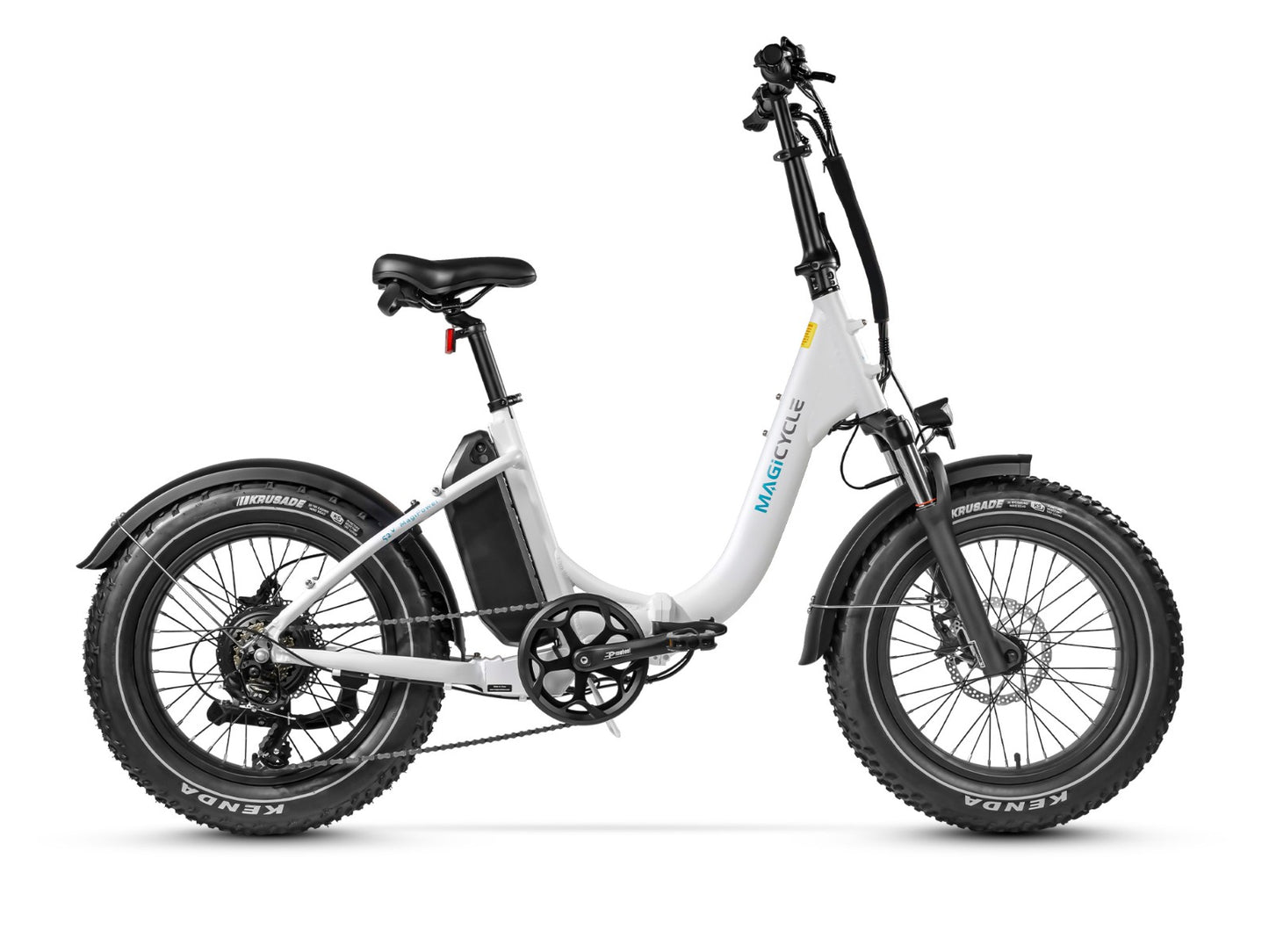

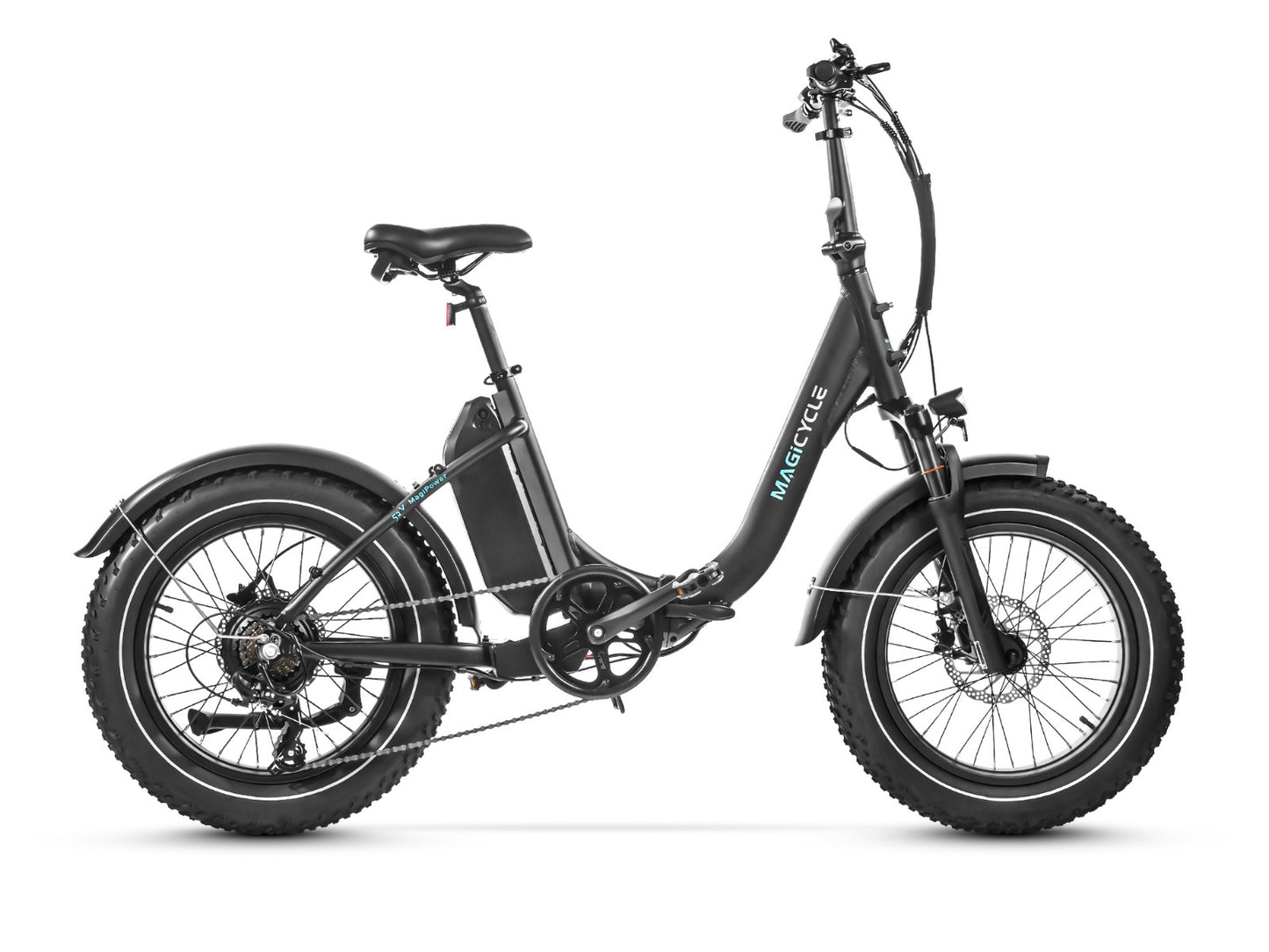

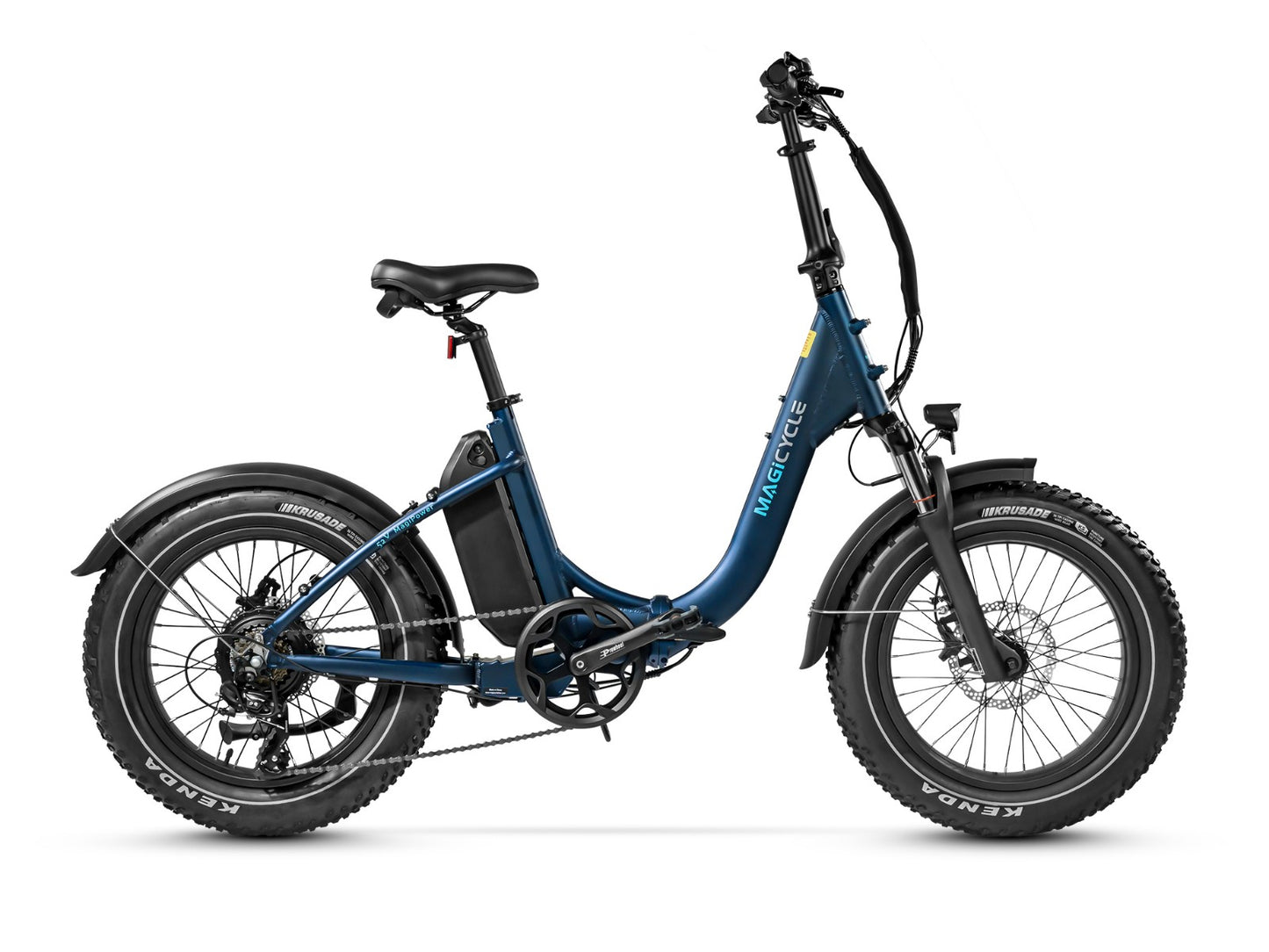

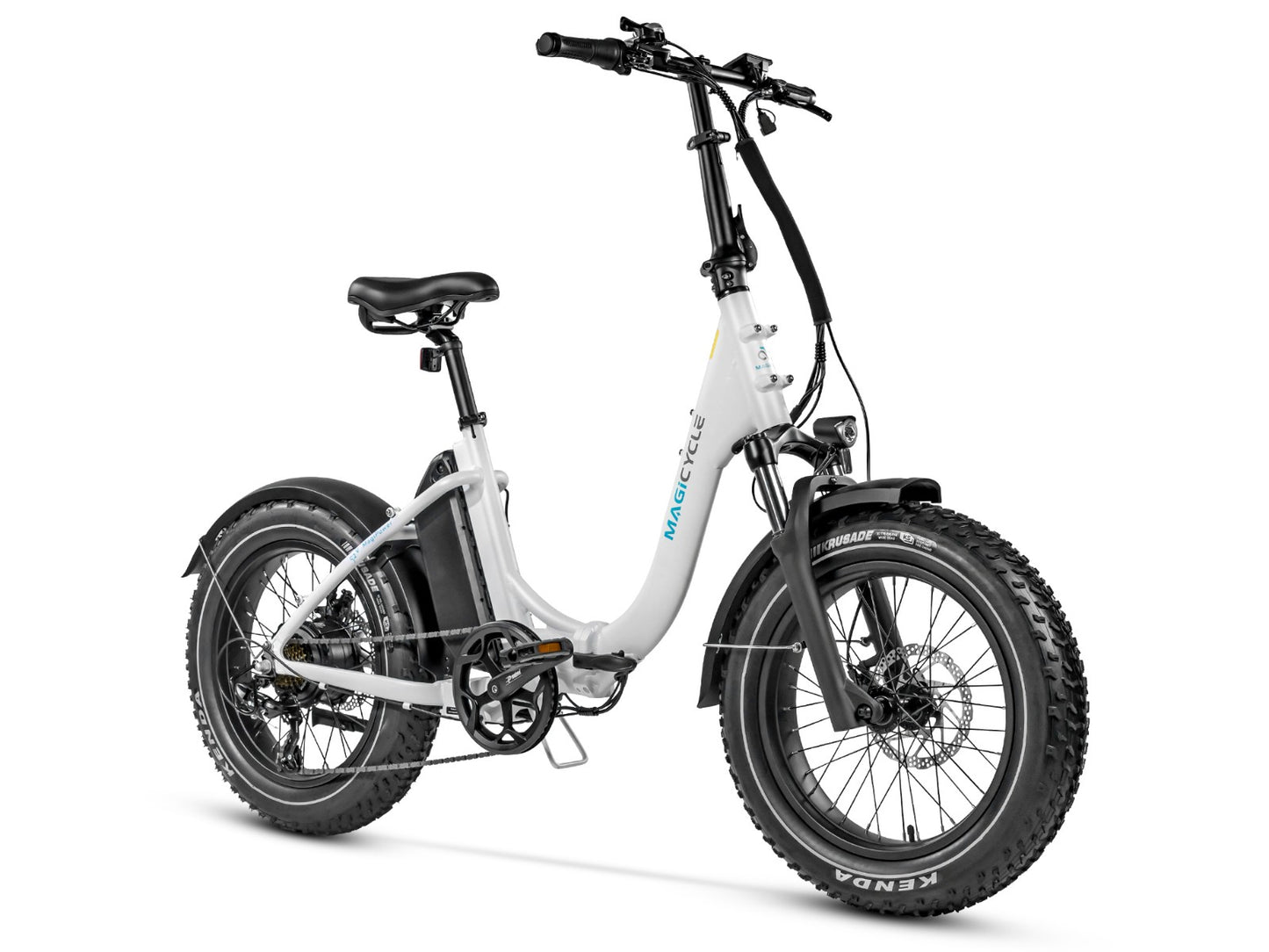

Magicycle Jaguarundi 52V Folding STEP-THRU Fat Tire E-bike

52V 15Ah Large- Capacity Lithium Battery

The lithium-ion battery of Jaguarundi comes with 18650 battery cells. Compared with nickel–metal hydride batteries, they provide not only larger capacity and voltage, which could inject more power into your e-bike, but longer batter life.

Specification

• Battery 52V 15Ah lithium battery
• Charger Short-circuit proof 3.0A fast smart charger
• Range 30-55 miles
• Controller 52V 600W FOC smart controller, Current Range 7-22Ah
• Hub Motor  600W brushless gear motor

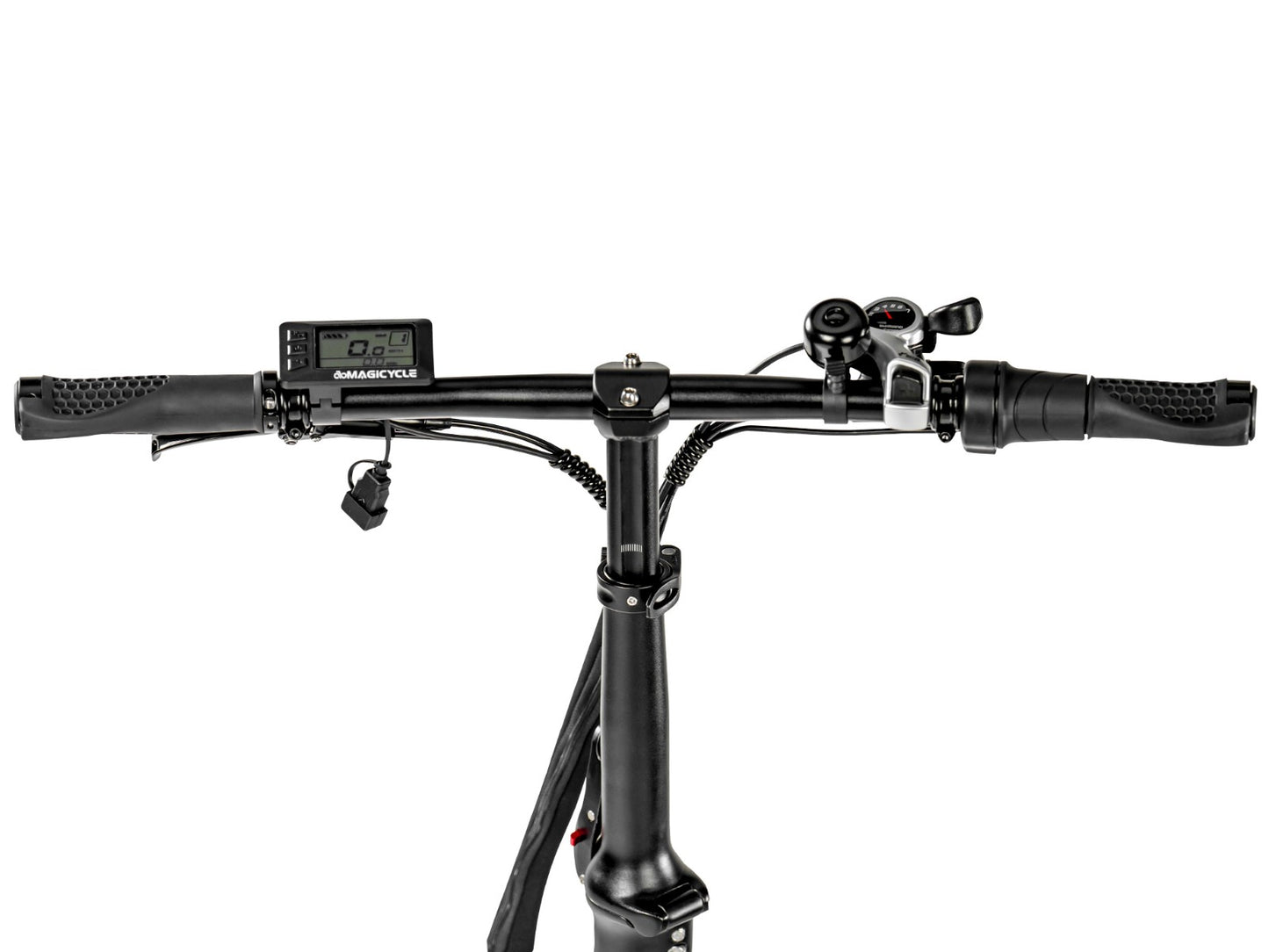

• Display Backlight Display with USB charging

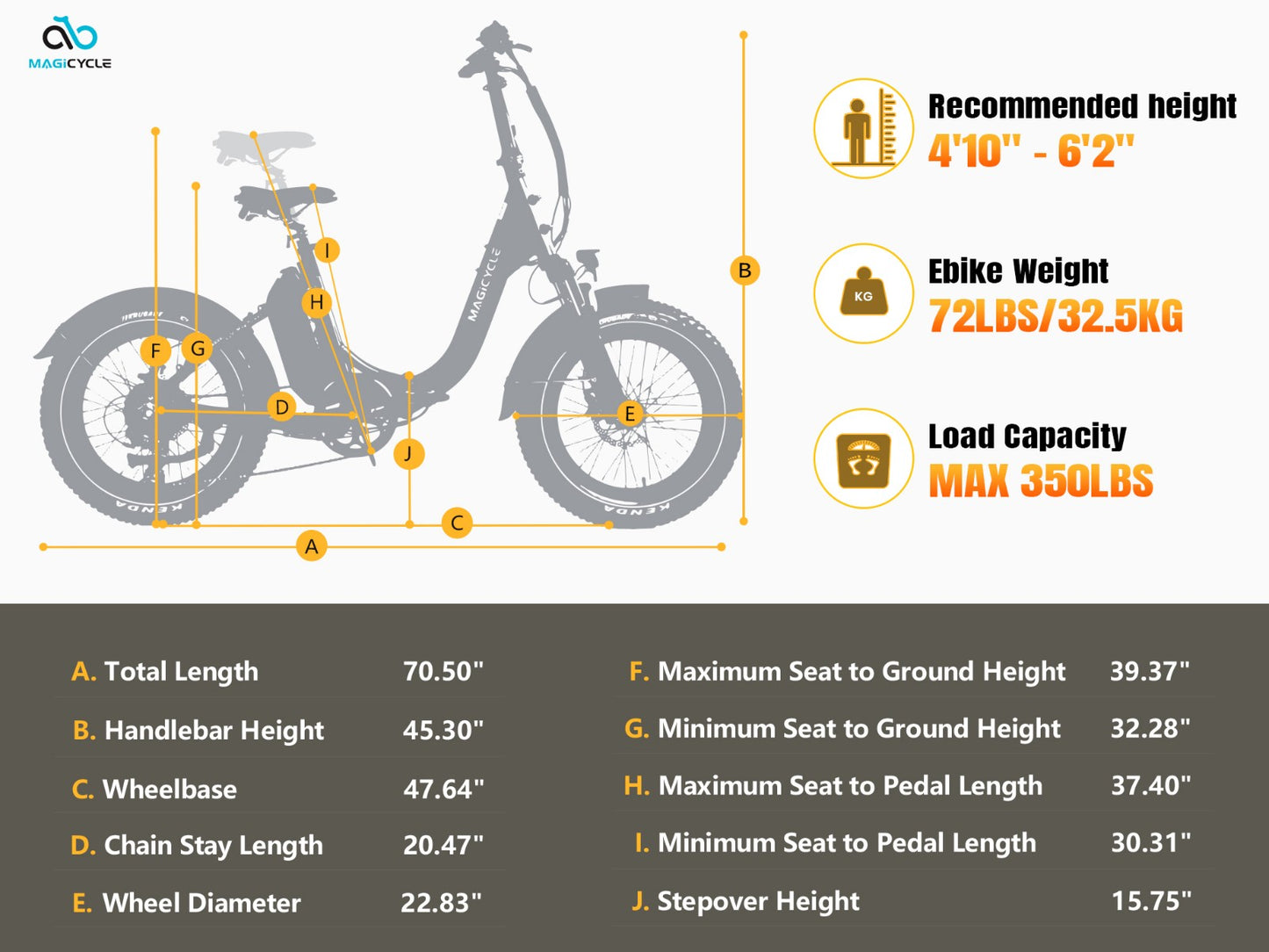

• Total Payload Capacity 350lbs
• Weight 72lbs/32.5kg
• Frame size 18"
• Pedal Assist Intelligent 7-level pedal assist with 12-magnet cadence sensor

Components

• Tires Kenda 20"x4.0"
• Front Fork Alloy Mechanical lockout suspension fork
• Brake Lever Aluminum alloy comfort grip levers with motor cutoff switch
• Throttle Half twist throttle
• Lights Integrated front light
• Pedal Wellgo alloy pedal with reflectors
• Freewheel Shimano-14-28T BROWN/BK
• Bike Frame 20" 6061 Aluminum Frame
• Brake 180mm Hydraulic Disc Brakes

• Front Light 6V LED light
• Chain KMC chain
• Saddle Super Soft Cushion
• Stem MA-400 SSABK
• Seat Post Diameter 30.9mm length 300mm
• Crank 48T,170mm forged alloy,dual-sided bashguard
• Kickstand Heavy duty aluminum
• Gearing Shimano 7 speed gear shift system
• Spokes 13 Gauge on the front / 12 Gauge on the back
